Polygonal / Octagonal Lighting Poles

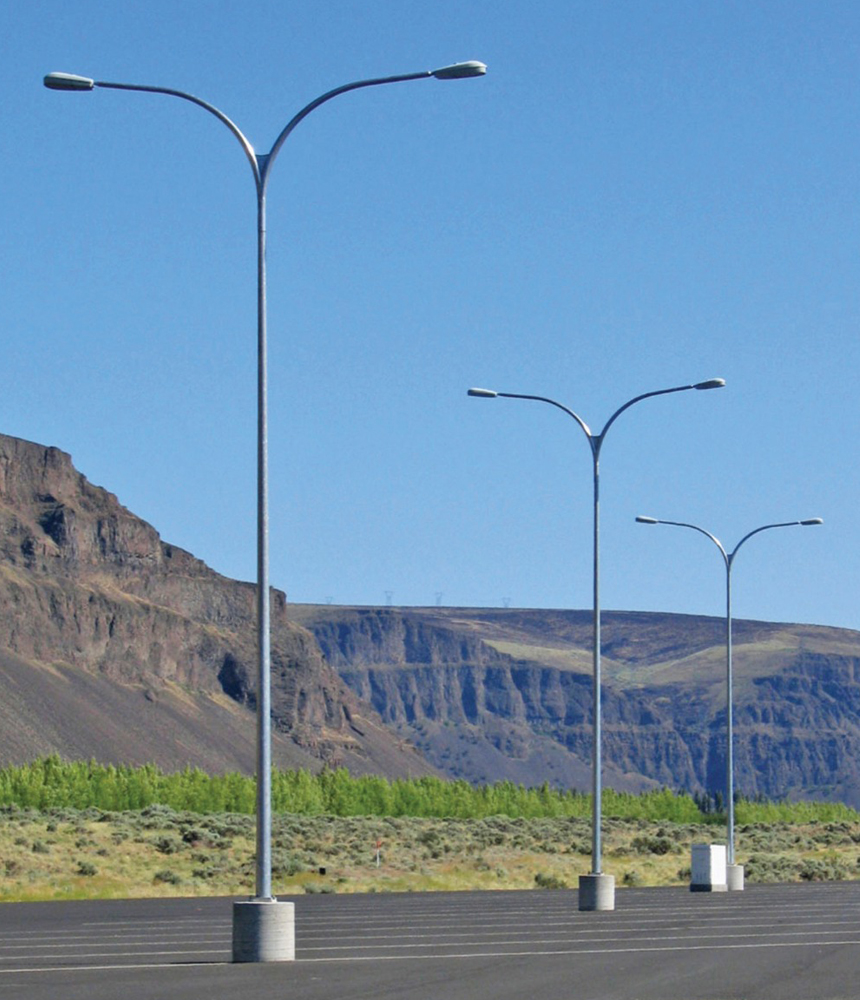

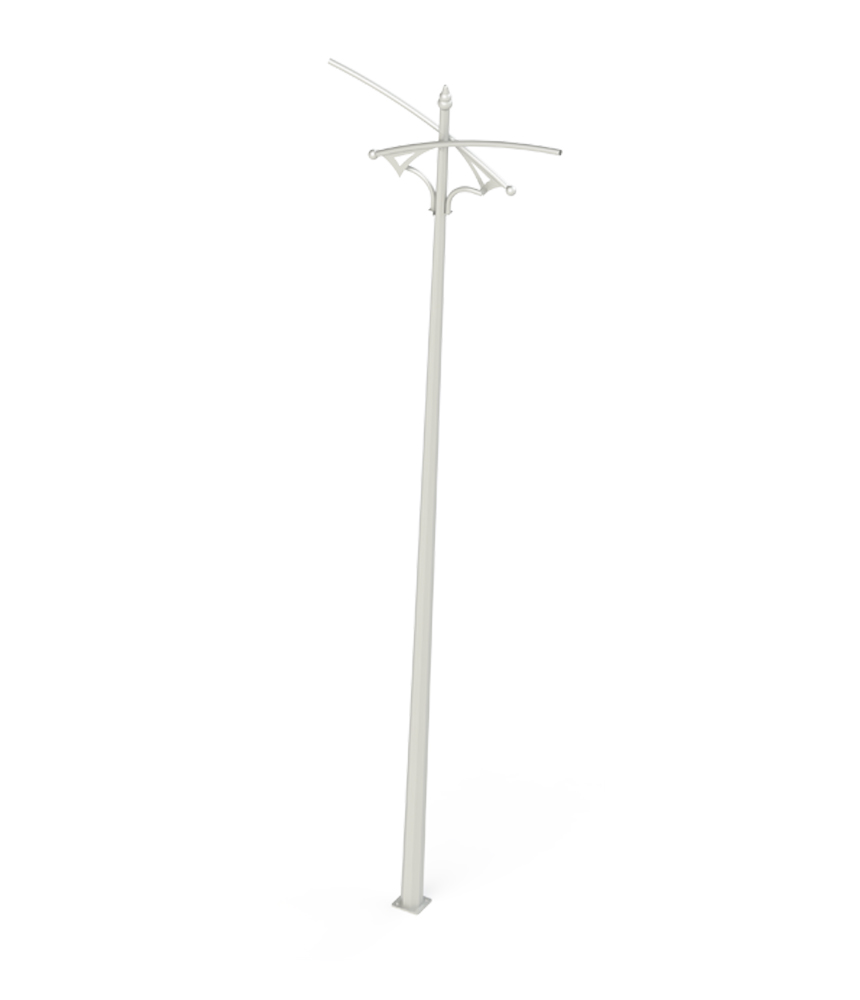

Jetcotech designs and manufactures a wide range of octagonal poles, for primary use as street lighting poles. Products are fabricated using premium quality raw material and manufacture standard size & customized to client's specification. Jetcotech octagonal poles come with large range of brackets solution for lights fi􀆫ngs & provide solution with ladder and platform also for maintenance purpose.

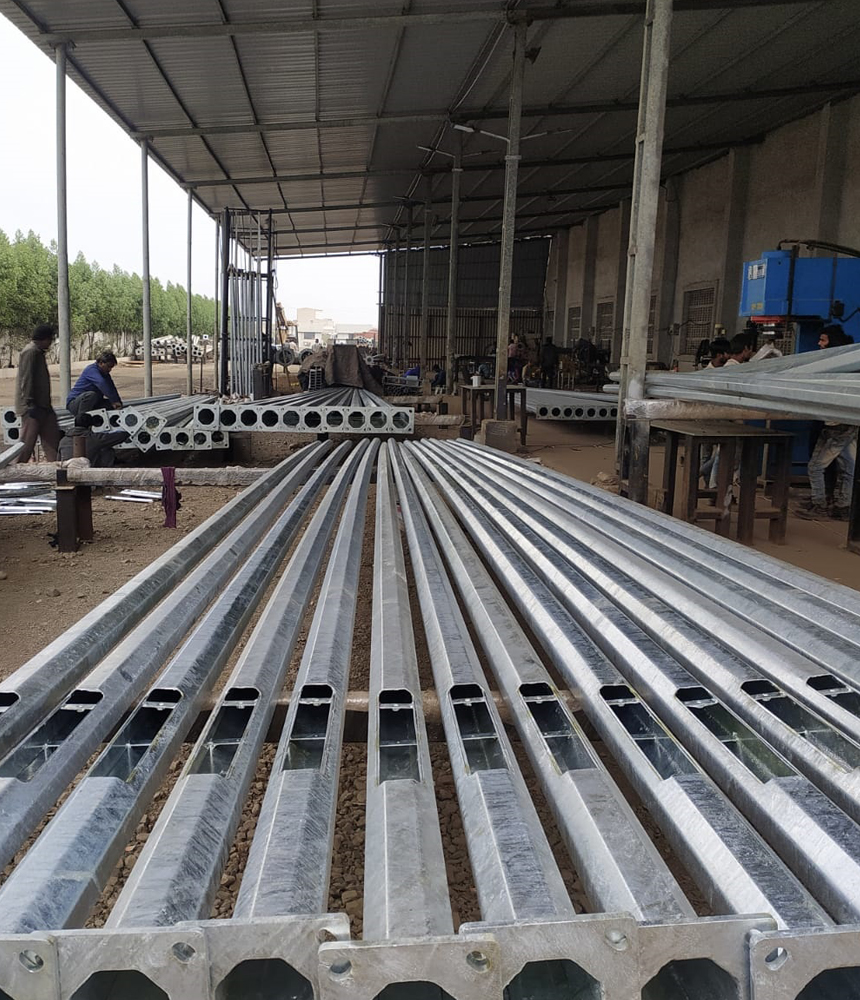

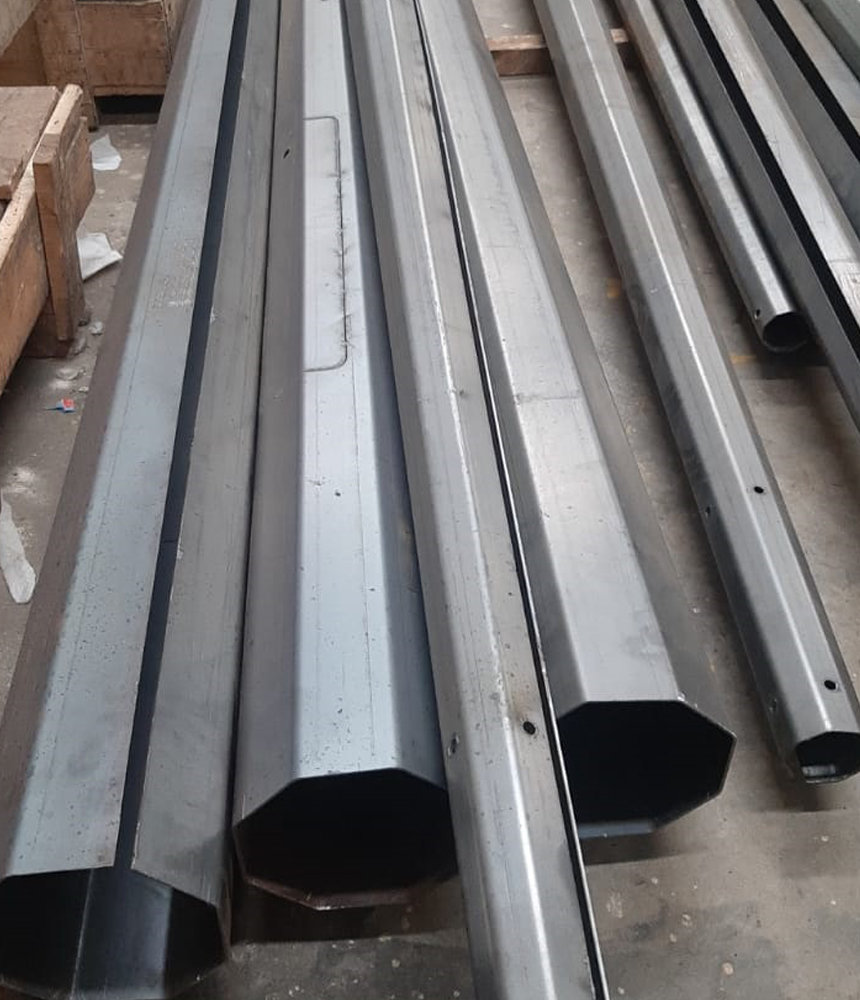

Jetcotech uses high-strength sheet steel as per IS standards and can produce single-piece poles up to a length of 13 meters. The two shell halves are welded together with advanced systems and with automatic SAW Welding Machin. The octagonal poles shafts are continuously tapered with single longitudinal welding & no circumferential weld. The manufacturing facilities available allows production of single section of length up to 13 meters, which can be galvanized through hot dip process at the company's in-house sophisticated galvanizing facilities as per IS, and guarantees great corrosion resistance.

Thickness : Customised Thickness Available as per Requirements

Finished : Hot Dip Galvanized (As per IS), PU Painted, Powder Coated

Product Code.	Height Mtr.	Top A/F(mm)	Bottom A/F(mm)	Thickness (mm)	Base Plate			Foundation Bolt
					Size	Thick.	PCD
JEOP301	3	60	130	3	200X200	12	200	M16 X 400 mm
JEOP302	3	70	130	3	200X200	12	200	M16 X 400 mm
JEOP401	4	60	130	3	200X200	12	200	M16 X 400 mm
JEOP402	4	70	130	3	200X200	12	200	M16 X 400 mm
JEOP501	5	60	130	3	200X200	12	200	M16 X 500 mm
JEOP502	5	70	130	3	200X200	12	200	M16 X 500 mm
JEOP601	6	60	130	3	220X220	12	220	M16 X 500 mm
JECP602	6	70	135	3	220X220	12	220	M16 X 500 mm
JEOP701	7	60	130	3	220X220	12	220	M16 X 500 mm
JEOP702	7	70	135	3	220X220	12	220	M16 X 500 mm
JEOP801	8	70	135	3	225X225	16	220	M20 X 600 mm
JEOP802	8	70	155	3	225X225	16	220	M20 X 600 mm
JEOP901	9	70	155	3	260X260	16	250	M24 X 600 mm
JEOP902	9	70	175	3	260X260	16	250	M24 X 600 mm
JEOP1001	10	70	155	3	260X260	16	250	M24 X 600 mm
JEOP1002	10	70	175	3	275X275	16	275	M24 X 600 mm
JEOP1101	11	90	210	3	300X300	20	300	M24 X 700 mm
JEOP1201	12	90	210	3	300X300	20	300	M24 X 700 mm

Note : Above all sizes are standard, Tailor-made sizes can be manufactured.
